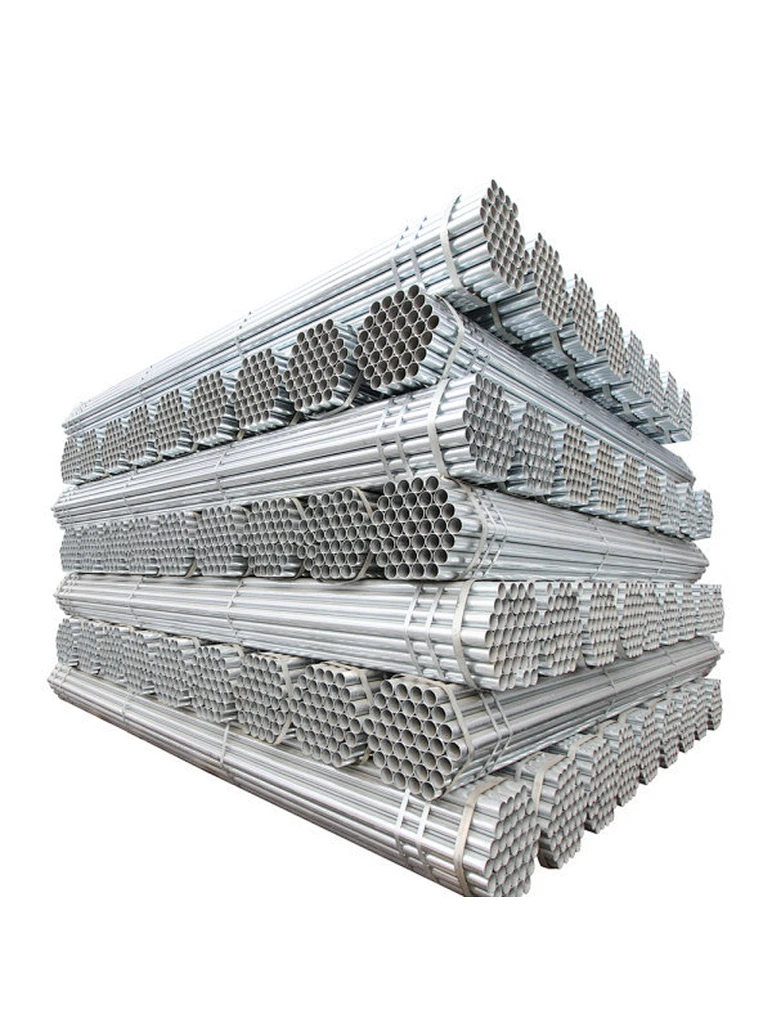

EN 10255 Steel Tube Steel Pipe
EN 10255 Steel Tube
Certification ISO
Out Diameter 1/2" - 6" ( DN15 - DN150)
Wall Thickness 2.0mm-5.4mm
Length 6M/ 12M or Customized
Ends Grooved/ Threaded/ Plain
Usage Wet, reaction, deluge, or dry pipe sprinkler system
Surface The Surface Finished Can be Specified by the Customers
Out Diameter 1/2" - 6" ( DN15 - DN150)
Wall Thickness 2.0mm-5.4mm
Length 6M/ 12M or Customized
Ends Grooved/ Threaded/ Plain
Usage Wet, reaction, deluge, or dry pipe sprinkler system
Surface The Surface Finished Can be Specified by the Customers
Quantity
EN 10255 steel pipe is equal to BS 1387 steel pipe standard, which is steel pipe used for water, steam and air conveyance.
Example Size
Note: Some of the main specifications are shown below, please contact us for more details
| Tube | Nominal Size | Outside Diameter | Wall Thinkness | Mass of Black Tube | |||||
Max | Min | Plain End | Screwed and Socketed | ||||||
| - | DN | mm | mm | mm | lb/ft | kg/m | lb/ft | kg/m | |
| Light | 1/2" | 15 | 21.4 | 21 | 2 | 0.636 | 0.947 | 0.646 | 0.956 |
| 2" | 50 | 60.2 | 59.6 | 2.9 | 2.74 | 4.08 | 2.81 | 4.15 | |
| 4" | 100 | 113.9 | 113 | 3.6 | 6.55 | 9.75 | 6.84 | 10 | |
| Medium | 1/2" | 15 | 21.7 | 21.1 | 2.6 | 0.813 | 1.21 | 0.828 | 1.22 |
| 3" | 80 | 89.5 | 88.1 | 4 | 5.62 | 8.37 | 5.8 | 8.54 | |
| 6" | 150 | 166.1 | 164.1 | 5 | 13.24 | 19.7 | 13.3 | 20.3 | |
| Heavy | 1/2" | 15 | 21.7 | 21.1 | 3.2 | 0.968 | 1.44 | 0.983 | 1.45 |
| 3" | 80 | 89.5 | 88.1 | 5 | 6.92 | 10.3 | 6.87 | 10.5 | |
| 6" | 150 | 166.1 | 164.1 | 5.4 | 14.31 | 21.3 | 14.7 | 21.9 | |
