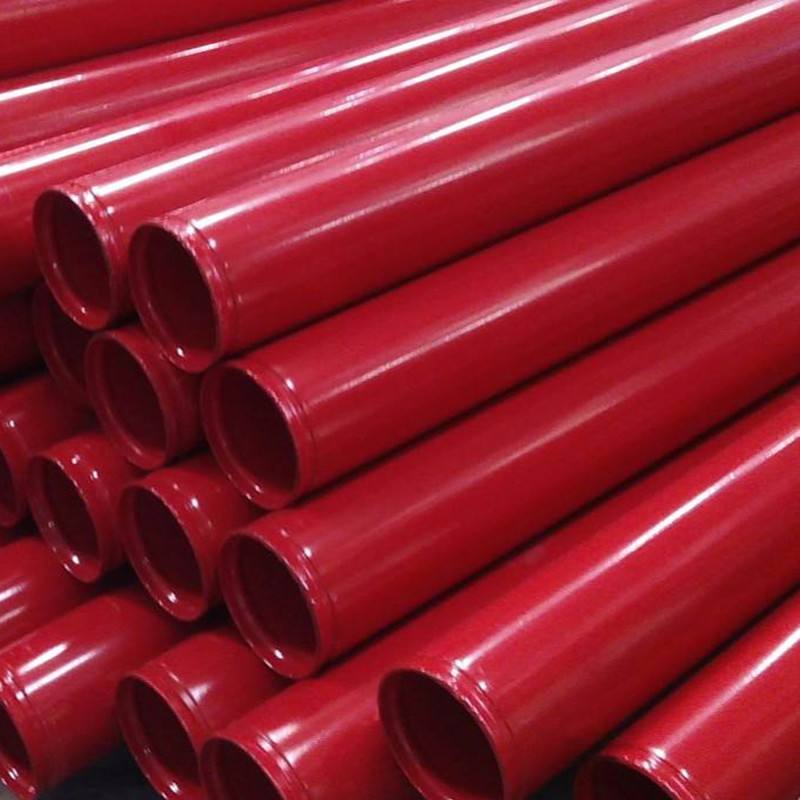

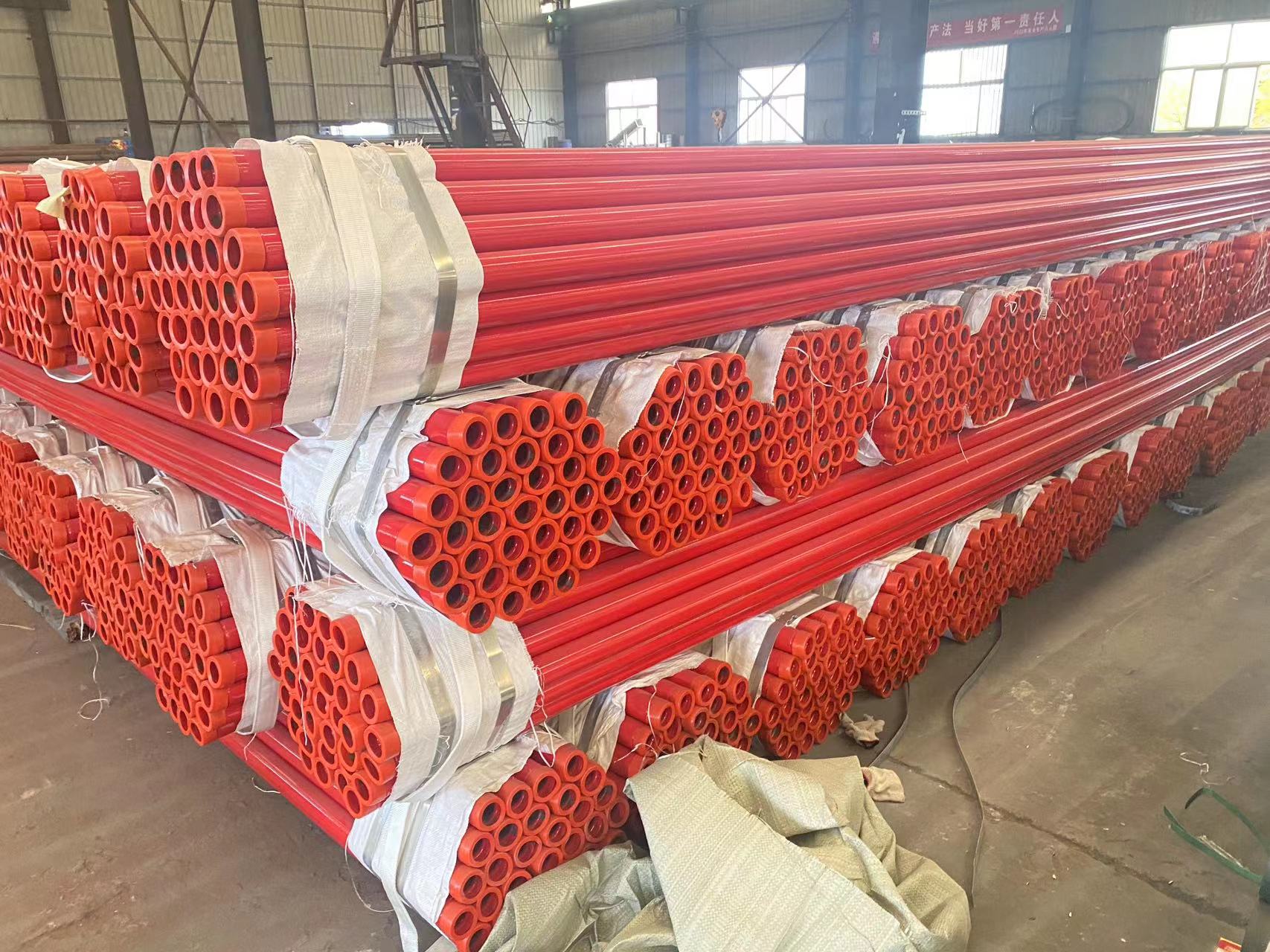

ASTM A795 ERW firefighting pipe FM listed
ASTM A795 ERW fire pipes, fire sprinkler pipes
Grade Gr.A/ B
Out Diameter 1/2" - 14" ( DN15 - DN350)
Wall Thickness 2.11-7.80 mm
Length 5.8M/ 6M /12M or Customized
Ends Plain/ Beveled/ Roll groove/ NPT/ BSPT
Surface Red/ Black/ Red epoxy or polyester/ Galvanized
Out Diameter 1/2" - 14" ( DN15 - DN350)
Wall Thickness 2.11-7.80 mm
Length 5.8M/ 6M /12M or Customized
Ends Plain/ Beveled/ Roll groove/ NPT/ BSPT
Surface Red/ Black/ Red epoxy or polyester/ Galvanized
Quantity
ASTM A795 ERW firefighting steel pipe( FM approved ) is intended for use in water-based fire protection systems for water distribution or valve trim application, such as wet, dry, preaction, or deluge sprinkler systems.
These ASTM A795 fire sprinkler pipes/ fire pipes are flexible and easy-to-operate firefighting pipes are suitable for wet, dry, preaction or deluge sprinkler systems. It allows for easy plant foundation and quick changeover times to other diameters and is available in various color choices.
Example Size
Note: Some of the main specifications are shown below, please contact us for more details.
| THICKNESS | Test Pressure | |||
DN | in. | mm | mm | Mpa | |
Sch10 | 25 32 40 50 65 80 100 125 150 | 1" | 33.4 | 2.77 | 4.8 |
1-1/4" | 42.2 | 2.77 | 6.9 | ||
1-1/2" | 48.3 | 2.77 | 6.9 | ||
2" | 60.3 | 2.77 | 6.9 | ||
2-1/2" | 73 | 3.05 | 6.9 | ||
3" | 88.9 | 3.05 | 6.9 | ||
4" | 114.3 | 3.05 | 8.3 | ||
5" | 141.3 | 3.40 | 8.3 | ||
6" | 168.3 | 3.40 | 6.9 | ||
Sch40 | 25 32 40 50 65 80 100 125 150 | 1" | 33.4 | 3.38 | 4. |
1-1/4" | 42.2 | 3.56 | 6.9 | ||
1-1/2" | 48.3 | 6.9 | |||
2" | 60.3 | 3.91 | 6.9 | ||
2-1/2" | 73 | 5.16 | 6.9 | ||
3" | 88.9 | 5.49 | 6.9 | ||
4" | 114.3 | 6.02 | 8.3 | ||
5" | 141.3 | 6.55 | 8.3 | ||
6" | 168.3 | 7.11 | 8.3 |
